Product description
The aspirator SO-4 is designed for suction of secretions and liquids during medical procedures. This device is mainly used in the treatment rooms and in the hospital emergency units.
Features
The aspirator SO-4 is specially designed casing that allows placement of two reusable collecting containers. Therefore, the aspirator can be used for long lasting treatments involving a large amount of suctioned fluids. The aspirator is mounted as standard on the low trolley and has a convenient handle in order to facilitate its displacement.
- stepless adjustment of the maximum vacuum
- clear indication of the current value of the vacuum
- convenient carrying handle
- practical handle for the power cord
- quiet and continuous operation
- foot switch
- reusable containers 1l or 2l
- disposable cartridges 1l or 2l
|

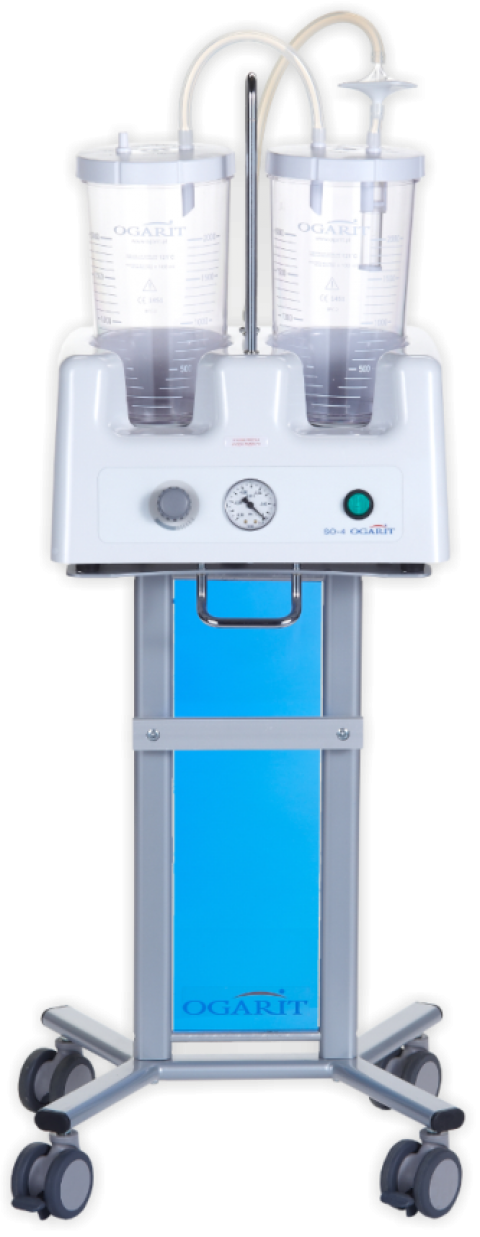

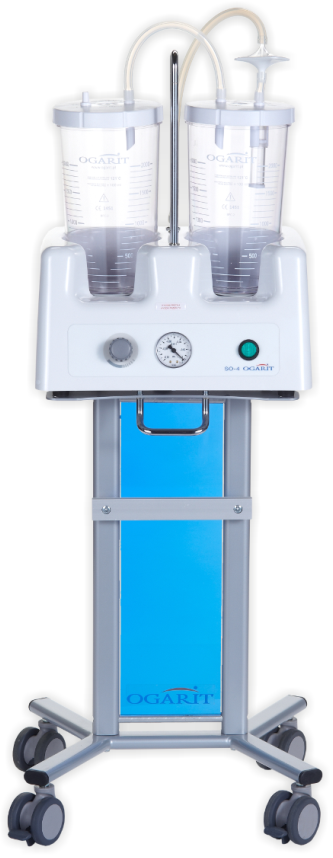

Optionally the aspirator SO-4 may be furnished with the aesthetic, stable trolley. Placing the aspirator on the trolley increases its functionality. The trolley can be equipped with an instrumental rail, to which you can attach additional accessories. |
Technical parameters
| Catalogue number | SO-04-20 | SO-04-30 |
| Name | SO-4/E | SO-4/T |
| Max air-flow | 20 l/min | 30 l/min |
| Max vacuum level | do 80kPa (+0%/-10%) | do 85kPa (+0%/-10%) |
| Vacuum adjustment range | (0÷80)kPa | (0÷85)kPa |
| Capacity of the collecting containers | max 2x2l | |
| Type of applied parts | CF | |
| Isolation class | II | |
| Power consumption | 70VA | |
| Power supply | 230V/50Hz | |
| Dimensions | 370x300x530mm | |
| Weight | 8kg | |
